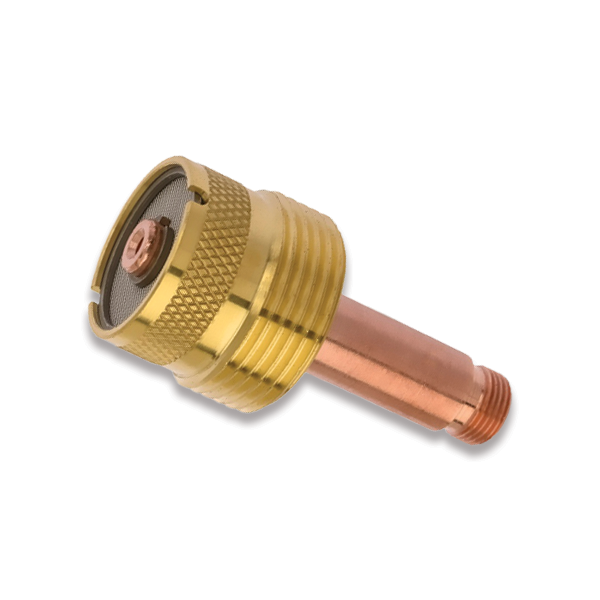

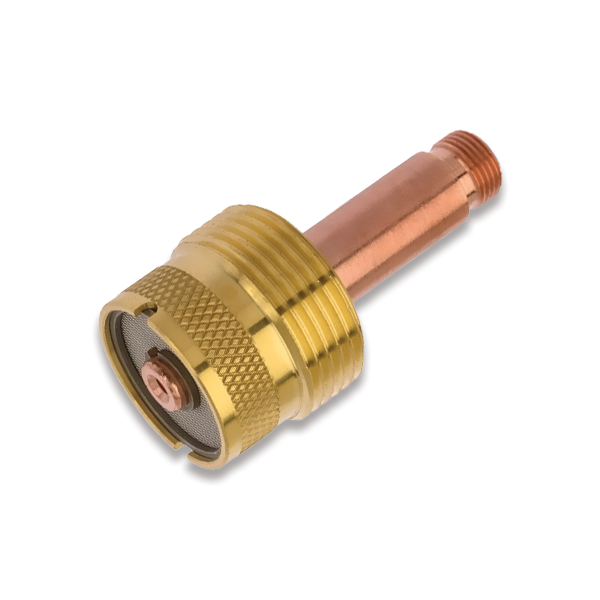

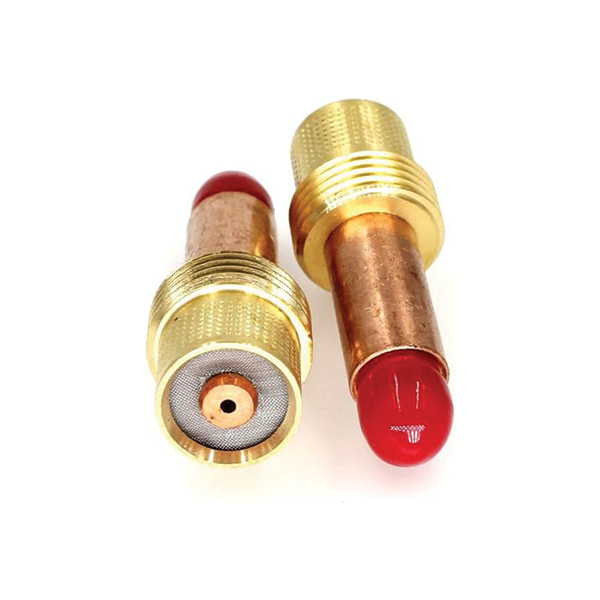

Miller® Weldcraft® 3/32" Large Gas Lens Collet Body is ideal for use with WP-17, WP-17V, WP-18, WP-18V, WP-26, WP-26V series torches and nearly prevents turbulence rising from the nozzle in the gas-shielding stream. Collet body features long stable stream that lets the electrode to extend further beyond the end of the nozzle for enhanced visibility of the weld zone.
Feature :
1. Virtually eliminates turbulence in the gas shielding stream as it emerges from the nozzle.
2. Long stable stream allows the electrode to be extended farther beyond the end of the nozzle for improved visibility of the weld zone.
Length : 10 CM
Width : 5 CM
Thickness : 3 CM
Net Weight : 1 KG
Volume : 150 CM3
Spesifikasi
Part: #45V64
Electrode Ø Max: 3/32" (2,4 mm)
Tipe: Large Gas-Lens Collet Body
Material: Copper / Brass
Panjang: ~1,985" (~50 mm)
Ampere Max: Hingga 350 A TIG
Torch Kompatibel: WP-17/17V, WP-18/18V, WP-26/26V (air & water cooled)
